Radiotherapy and Rehabilitation Immobilization

Low temperature thermoplastic : Fixation products for radiotherapy and occupational therapy.



Thermoplastic Sheet

Dimensions:920mm x 610mm.

Thickness:1.6mm,2.4mm,3.2mm  4.0mm.

Perforation:0,1%,5%,10%,22%, 36%,42%.

Colour:white,blue,beige.





Model-2013







M10 Hip-Pelvis Frame with Push Pins



Fixing the membrane plug body

Description: Plug-body fixed - film SeeDOS Code Number: M-F3624W02 ( 2.4mm thickness )

SeeDOS Code Numbers:

M-F4232W02 (thickness 3.2mm  42% perforation )
M-F3624W02 (thickness 2.4mm  22% perforation )
M-F0024W02 (thickness 2.4mm  0% perforation)
M-F0024W03 (thickness 2.4mm  0% perforation )

Dimensions of Thermoplastic Sheet:460mm x 560mm

Description:
Procedure : Position the patient on the base-plate with this chest-pelvic frame mask, and the mask would be softened and will turn transparent at 65-70°C . Keep this status for 1 to 3 minutes. (The tensile radio would be more than 200%).
Different shapes can be made optionally and repeated.
This thermoplastic mask can be moulded for the patients in about 3 to 5 minutes at normal room temperature.
The minimum shrinkage would be attained in 20 minutes after moulding.

Overall mask stability limits patient displacement. Low-stretch draping method provides greater contouring and rigidity.

Well defined and indexable thermoplastic masks ensure a consistent daily position. Unique central wedge prevents patient from sliding, ensuring a precise and reproducible immobilization. it also acts as a reference point for positioning patient prior to immobilization.

Non-stick coating with soft surface feel thermoplastic, with engineered limited shrinkage. Cooler activation temperature of 65-70°C. Silk feel mask coating with smooth perforations (or non perforated) results in a soft feeling on the patient's skin.



Radiotherapy Immobilization Products



M11

M09 M08



 Breast cast  ( Bar-lock frame )                                  Chest-Pelvic Mask ( Bar-lock frame )                       Hip & Pelvic Frame ( Bar-lock frame )



Breast Cast ( Bar-lock Frame )

SeeDOS Code Numbers:

Text Box: M-D4232W01 (thickness 3.2mm, 42% perforation)Dimensionsof thermoplastic sheet: 405mmx230mm

M-D2224W01 (thickness 2.4mm, 22% perforation)Dimensionsof thermoplastic sheet: 340mmx230mm

Description:

Position the patient on the base-plate with this breast cast mask and the mask will soften and turn transparent at the temperature 65-70degC and keep this status for 1 to 3 minutes ( the tensile ratio would be more than 200%).

Different shapes could be made optionally and repeatedly. This thermoplastic mask could be moulded for the patients in about 3 to 5 minutes at normal room temperatures. the minimum shrinkage would be attained in 20 minutes after moulding



Chest-Pelvic Mask ( Bar-lock frame )

SeeDOS Code Numbers:

Text Box: M-F4232W01 (thickness 3.2mm, 42% perforation)

M-F3624W01 (thickness 2.4mm, 22% perforation)

M-F0032W01 (thickness 3.2mm, 0% perforation)

M-F0024W01 (thickness 2.4mm, 0% perforation)

Dimensions of thermoplastic sheet: 463mm x 480mm

Description:

Anti-stick surface : The validity of anti-stick surface could last two years. Smooth comfort and strengthened edges provide maximum patient comfort along the neck line without any broken pores or burrs. The users skin is protected and a precise immobilization is reachable.

Working temperature: 65C. Mask will be completely softened in about one minute. The completely softened material becomes transparent, which helps the therapist to make a proper judgement during operation.

The mask heats up quickly and ensures ample time to mould the important areas with precision. Eco-friendly material is degradable in soil through biological decomposition.



Hip and Pelvic Mask ( Bar Lock Frame )

SeeDOS Code Numbers:

M-E4232W01 (thickness 3.2mm , 42% perforation, Size: 405mmx230mm)

M-E2224W01 (thickness 2.4mm , 22% perforation, Size: 340mmx230mm)

M-E0032W01 (thickness 3.2mm , 0% perforation. Size: 408mmx2504mm )

M-E0024W01 (thickness 2.4mm , 0% perforation. Size: 506mmx219mm )

Dimensions of Thermoplastic Sheet : 463mm•480rrim up/down edgings : 229 / 170mm

Description:

Thermoplastic with engineered limited shrinkage that provides a high degree of patient immobilization with comfort.

The firmly fixed mask limits movement and patient rotation.

Memory Effect allows the user to re-mould a finished mask as needed which provides significant flexibility for modification during treatment or simply to save on waste.

Quick Release system allows fast and safe removal with high risk patients. Innovative integrated "L" profiles enable you to quickly and easily secure the mask to the base plate for a precise immobilization.





M07

M06 M05



Head-Neck-Shoulder Mask (Bar-lock frame)              Triangular Head Mask                                               Pre-cut Neck-Shoulder Mask



Head-Neck-Shoulders Mask ( Bar lock frame )

SeeDOS Code Numbers:

M-C3624W03 (thickness 2.4mm, 36% perforation)

M-C2220W03 (thickness 2.0mm, 22% perforation)

M-C3620W03 (thickness 2.0mm, 36% perforation)

M-C2224W03 (thickness 2.4mm, 22% perforation)

Dimensions of Thermoplastic Sheet : 393mm x 439mm, up/down edgings : 98 / 179 / 99mm

Description:

Position the patient on the base-plate with this Head Neck Shoulders Mask and the mask will soften and turn transparent at the temperature 65-70°C. Keep this status for 1 to 3 minutes. (The tensile ratio will be more than 200%). Different shape can be made optionally and repeatedly.

This thermoplastic mask can be moulded for the patients in about 3 to 5 minutes at normal room temperature.

The minimum shrinkage would be attained in 20 minutes after moulding.



Triangular Head Mask

SeeDOS Code Numbers:

M-A3624W03 (thickness 2.4mm perforation)
M-A3632W03 (thickness 3.2mm perforation)

Dimensions of thermoplastic sheet: 338mm x 324mm, up/down edgings : 99 / 179mm

Description:

These thermoplastic products have superior moulding properties that offer a high degree of patient immobilization with comfort.

The firmly held mask prevents shoulder rotation and chin-drop.

Memory Effect allows for the user to remould a finished mask as desired which provides significant flexibility for modification during a patient treatment or simply to save on waste.

Thinner masks resulting in less absorption and increased skin sparing. Positioning blocks and wedges that effectively support different neck shapes and allow for flexion and extension positioning of the head.

Quick Release System allows for fast and safe removal of the mask from the user.



Pre-Cut Neck Shoulder Mask

SeeDOS Code Numbers:

M-B3624A'01 (thickness 2.4mm, 36% perforation)

M-E12220W01 (thickness 2.0mm, 22% perforation)

M-B3620W02 (thickness 2.0mm, 36% perforation)

M-12.2224M2 (thickness 2.4mm, 22% perforation)

Dimensions of thermoplastic sheet: 1154mm x 479mm up/down edgings : 98 / 179 / 99mm

Description:

Pre-cut neck & Shoulder masks with anti-stick surface: the anti-stick surface lasts for two years. Smooth comfort and strengthened edges provide maximum patient comfort along the neck line without any broken pores or burrs. The users' skin is protected and a precise immobilization is achieved.Working temperature: 65C. Mask will be completely softened in about one minute. The completely softened material becomes transparent, which helps therapist to make a proper judgment during operation. The mask heats quickly and ensures ample time to mould the important areas with precision.

Eco-friendly material is degradable in soil through biological decomposition.





M04



Head and Shoulders S-Type Mask                           U-frame Mask (Extended)                                        Standard U-frame Mask



Head and Shoulders S-Type Mask

SeeDOS Code Numbers:

M-C3632W01 (thickness 3.2mm, 36% perforation)

M-C3624W01 (thickness 2.4mm, 36% perforation)

M-C3632W02 (thickness 3.2mrn, 36% perforation)

M-C3632W02 (thickness 2.4mm, 36% perforation)

Dimensions of thermoplastic sheet: 608mm x 458mm

Description:

Disposable S-Type Head and Shoulder Masks with clever design, easy to operate, and anti-stick surface available, while validity of anti-slick surface lasts two years. Smooth and strengthened edges, without any broken pores or burrs. The users skin  is protected and a precise immobilization is achieved .Working temperature: 65degC. Mask will be completely softened in about one minute. The completely softened material becomes transparent, which helps the therapist to make a proper judgment during operation. The mask heats up quickly and ensures ample time to mould the important areas with precision.

Eco-friendly material is degradable in soil through biological decomposition

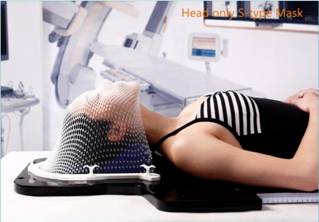

Head Only S-Type Mask

SeeDOS Code Numbers:

M-A3624W04 (thickness 2.4mm, 36% perforation)
M-A3632W04 (thickness 3 2mm, 36% perforation)

Description:

Disposable S-Type Head Only thermoplastic masks, which heat up quickly and allow for ample time to mould the important areas with precision, ease of use and high durability. Transmission factor is less than carbon fibre : low temperature thermoplastic with minimal shrinkage for sustained use. Smooth comfort edge provides maximum patient comfort along the neck line. Antibacterial non-stick coating with soft surface feel and low melting point and long melting period.
Clever design and operation provides a more convenient and suitable base for a variety of facial features ; easier to handle after use, the diaphragm does not stick to the bottom of the frame.
S-neck shoulder sets this film in the appropriate position.

Dimensions of thermoplastic sheet: 272mm x 98mm

Description :

Easy to use, this low temperature thermoplastics mask is designed specifically for radiation therapy. it is softened in warm water & quickly forms to facilitate the treatment, it provides sufficient set-up time for the therapist and simply re-heating the thermoplastic will allow for any necessary modifications.

The low working temperature means that this thermoplastic can be formed directly against the patients skin without any discomfort. Perforated sheets for head & neck applications allow patients to breathe naturally. These thermoplastics also have minimum shrinkage to ensure accurate fit for the whole treatment period.

Once formed, the thermoplastic can be marked for patient and treatment identification, also ensuring accurate reproducibility.

Standard perforated thermoplastic material is one of the industry's most popular choices, the standard mask is available in various dimension.





Rehabilitation Products



Related Portfolio Items





MG-Y01

SeeDOS Code : MG-Y01

MG-Y01 Body Jacket pre-cut splints - Back heart shaped fixed plate:

For spinal surgery, cerebral palsy, and children's scoliosis, spinal injury endures fixed, maintaining physiological curvature of the spine, lumbar portion of the spine using the muscles and soft tissue to get enough rest.

MG-Y01L  : 580mm ( Front ), 540mm ( Back )

MG-Y01M : 500mm ( Front ), 460mm ( Back )

MG-Y01S : 440mm ( Front ), 400mm ( Back )



MG-J01



SeeDOS Code : MG-J01



MG-J01 Neck collar pre-cut splints:

For soft tissue neck injuries, burns, and postoperative fixed, keeping the neck hyper-extended. When lateral neck scar, head tilted to the healthy side.

MG-J01L  : 360mm ( Front ), 415mm ( Back )

MG-J01M : 260mm ( Front ), 340mm ( Back )

MG-J01S : 315mm ( Front ), 320mm ( Back )
