Biopsy Guns / Needles

A range of guns, needles and accessories for biopsy and other applications including :

Application Areas ( please click on area of interest )

Clinical Oncology

Haematology Biopsy

Interventional Radiology

Urology

Mammography

Antenatal Diagnostic

Laparoscopy

Anaesthesia

Dermatology - Skin Biopsy Punch

MRI Biopsy

Needle Accessories - Syringe Holders, Disposable Needle Guides


These products are the results of extensive research and development and are covered by international patents.

Both the production of the metallic parts and the strong plastic components are in a controlled environment whilst the assembly, testing and packaging of the finished product take place in a class 10.000(FED.STD.209E) clean room, one of the biggest and most modern in Europe for this category of products.

All processes are performed in a 3000 square metre modern facility in compliance with ISO 9001 and ISO 13485 international standards and all products and components pass through rigorous quality control at each step of the path, from materials acceptance up to customer delivery.

The movement of each component as well as the finished product is computer tracked step by step.

Please note : All disposable items are sterile. CE Marked : CE0426

SeeDOS Code for Ordering : product code + gauge + length in cm :

SeeDOS Product Code Example : Product COMPLETE CHIBA, 21 Gauge, 15 cms = CCH2115

Definitions : Logo : Top Core is available as an option for most Guillotine type, soft tissue, biopsy needles.

Where Top Core is available it is indicated by the logo. Please enquire.



Logo: Echonox ultrasound echogenic steel is available for most types of biopsy needles. Where Echonox is available it is indicated by the logo. Please enquire.

MRI Compatible : MR Clear is available on certain types of biopsy needles go to MRI Biopsy



NEW MULTI-CORE® , SeeDOS Codes : MLC : Needle gauges 14,16,18, 20 available, Needle lengths 11,15,20 and 25 cm

Disposable Automatic Soft Tissue Biopsy device. Minimum Order : 1 box of 15

Available in versions : Standard, DC  Detachable Cannula and SET TAC



SeeDOS Ltd - MultiCore Disposable Automatic Soft Tissue Biopsy Device Brochure.pdf



Disposable Automatic Biopsy Device

MULTI-CORE® is the latest single use biopsy device, which performs the entire biopsy manoeuvre quickly, fully automatic, with precision. Versatile, simple to use and reliable, with  unique ergonomics for cocking and  firing, it represents the “state of the art” among automatic biopsy instruments, to date.

Spring loaded stylet and cannula harvest diagnostic quality specimens with minimal tissue displacement or needle deflection.

MULTI-CORE® can be easily operated with one hand, making it ideal for procedures requiring ultrasound guidance.

The needle, made from the echo reflecting metal alloy ECHONOX®, is entirely visible for its whole length under ultrasound guidance and the procedure is free from any risk for malignant cells seeding.

MULTI-CORE®  is also available with  the exclusive TOP-CORE® notch geometry feature, which delivers tissue cores up to 50% larger than standard competitive needles).

MULTI-CORE® is also available as specific set for CT scanning  as well as with detachable cannula for single-access procedures.





Complete Chiba, SeeDOS Codes : CCH7,9,11,15 or 20 : lengths 7,9,11,15, 20 and 25 cm available,    14,16 and 18 gauge

For Cytologic Biopsy and Medicine or anesthesia injection before prostate biopsy. Minimum order : 1 box 20,25 and 30 pcs.



SeeDOS Ltd - COMPLETE CHIBA Disposable Chiba-Type Cytologic Biopsy Needle - brochure -pdf



instructions - pdf

GO to Biopsy Quotation Request form

Fast Gun, SeeDOS Code : SFG001 : Fully automatic reusable gun for tru-cut biopsy

SeeDOS Ltd - FAST GUN Automatic Reusable Biopsy Gun - brochure - pdf

instructions - pdf

GO to Biopsy Quotation Request form

Fast-Cut, SeeDOS Codes :  FSC15, 20 or  25 : lengths 15, 20 and 25 cm available,    14,16 and 18 gauge

Disposable needle for FAST-GUN automatic reusable biopsy gun.Minimum order : 1 box 20,25 and 30 pcs.







instructions - pdf

GO to Biopsy Quotation Request form

Fast-Cut B, SeeDOS Codes: FSC : Needle gauges 14, 16, 18 and 20 available, Needle lengths 16, 20 and 25cm available

Disposable biopsy needle compatible with MAGNUM automatic biopsy device. Minimum order : 1 box of 25 pcs.



SeeDOS Ltd - FAST-CUT B Disposable Biopsy Needle for Automatic Gun brochure - pdf



instructions - pdf

FAST-CUT B®




Biopsy needle compatible with automatic biopsy device MAGNUM™

FAST-CUT® B, designed to work with MAGNUM™ automatic biopsy device, permits the operator an easier and safer biopsy manoeuvre.



The sample-notch designed is shaped to collect tissue without damage.



Loading is easy with the use of a removable spacer (included).



Centimetre markings allow easy and safe depth needle placement.



Echo-marker is provided in the tip to allow correct needle’s deployment under ultrasound guidance.



All needles are colour coded for ease in gauge selection.



Colt, SeeDOS Codes: CLT & CLT _DC ( Detachable Cannula ): Needle gauges 14,16 and 18 available, Needle lengths 11,15,20 or 25 cm available

Fully automatic disposable gun for tru-cut biopsy.                           Minimum order : 1 box 25 pcs.







SeeDOS Ltd - COLT Disposable Automatic Soft Tissue Biopsy Instrument - brochure - pdf



SeeDOS Ltd - COLT & Needle Guide AG Instructions.pdf



SeeDOS Ltd - COLT DC Version Instructions.pdf



SeeDOS Ltd - COLT TC - MR SET Instructions.pdf

COLT® DC ( Detachable Cannula )
Disposable Automatic Soft Tissue Biopsy Instrument

COLT® is a single use, guillotine-type, soft tissue biopsy instrument which performs the entire bioptic manoeuvre quickly, fully automatically with precision.

  • Versatile, simple to use and reliable, with the unique rapid firing or two-stage firing feature, it represents the state of the art in automatic biopsy instruments.

  • COLT® can be easily operated with one hand, making it ideal for procedures requiring ultrasound guidance. Sample biopsy core length 20mm.

  •  Stylet completely retractable from the cannula left in situ: ideal for multiple biopsies (prostate mapping).

  •  50% more core cross sectional size with Top-Core

Specific product releases for CT-guided procedures (TC) and for endo-urologic use (DC) available.

Colour coded for easier needle size (gauge) determination.

SeeDOS Ltd - COLT Clinical Literature.pdf

GO to BIOPSY Quotation Request Form

Spring-Cut, SeeDOS Codes: SPG : Needle gauges 14,16 and 18 available, Needle lengths 11,15,20 or 25 cm available

Semi automatic, disposable needle device with handle for tru-cut biopsy.       Minimum order : 1 box 25 pcs.







SeeDOS Ltd - SPRING CUT Semiautomatic Soft Tissue Biopsy Needle - brochure - pdf



SeeDOS Ltd - Spring Cut and Guided Needle Instructions.pdf



SeeDOS Ltd - Spring Cut DC Version Instructions.pdf



SeeDOS Ltd - SRING CUT TC-MR SET Versions Instructions.pdf

SPRING-CUT®  DC ( Detachable Cannula )
Semiautomatic Soft Tissue Biopsy Needle

SPRING-CUT®DC represents the latest generation of semi-automatic guillotine-type biopsy needles.
Its exclusive features single it among all other biopsy devices in the same category.

Features include:

  •  Stylet advance button remains locked during   penetration: simpler manoeuvre, increased safety during the biopsy procedure, enhanced sensitivity upon penetration.
  •  Pre-selectable bioptic throw (5-10-20 mm), adaptable  lesion sampling size.
  •  Stylet completely retractable from the cannula left in situ: control of the adequacy of the specimen, ideal for multiple biopsies (prostate mapping).
  •  Stronger mechanism: reliable cutting of the most compact tissue.
  •  50% more core cross sectional size with Top-Core

Specific product releases for CT-guided procedures (TC) and endo-urologic use (DC) available.

GO to BIOPSY Quotation Request Form

Hand-Cut, SeeDOS Codes : HND11,15,20 or 25 : Needle lengths 11,15,20 or 25 cm available, 14,16 and 18 gauge

Semi automatic, disposable needle device with handle for tru-cut biopsy.    Minimum order : 1 box 20,25 and 30 pcs.



brochure - pdf

GO to Biopsy Quotation Request form

Bio-Cut, SeeDOS Codes :SBC11,15,20 or 25 : Needle lengths 11,15,20 or 25 cm available, 14,16 and 18 gauge

Semi automatic, disposable needle device with handle for tru-cut biopsy.    Minimum order : 1 box 20,25 and 30 pcs.



SeeDOS Ltd - BIO CUT Disposable Guillotine Type Soft Tissue Biopsy Needle - brochure - pdf



instructions - pdf

GO to Biopsy Quotation Request form

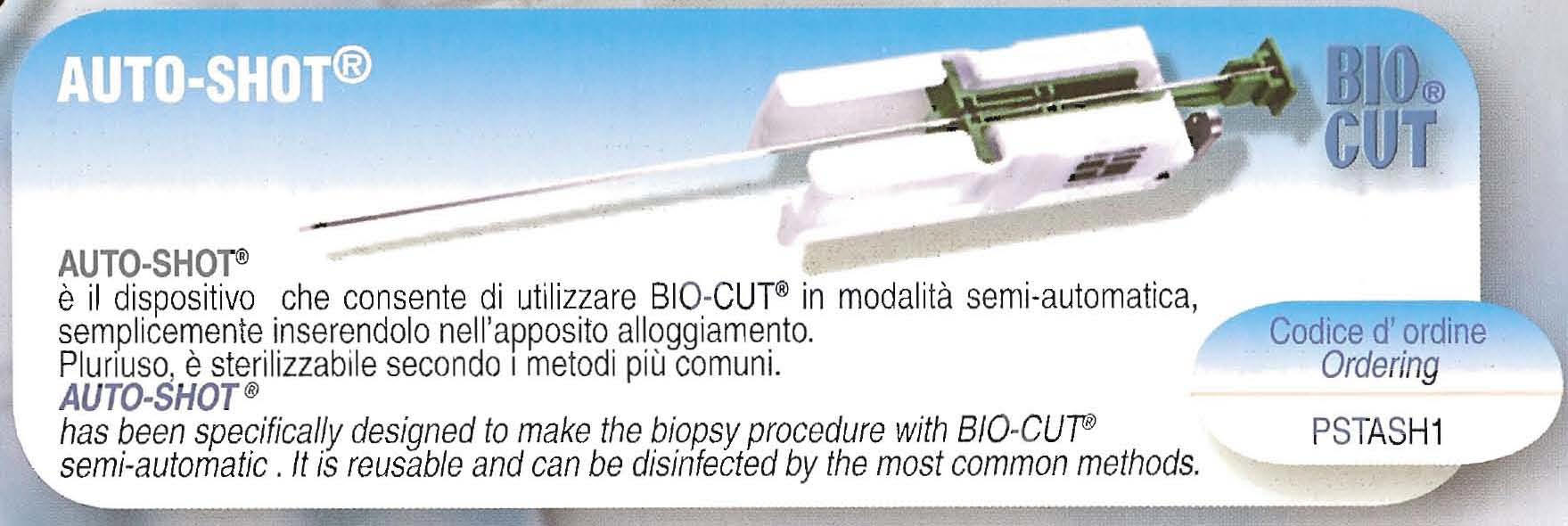

Auto-Shot, SeeDOS Codes : PSTASH1 : Semi-automatic Gun for use with Bio-Cut ( see above )
