HDR Dose Planning
HDRplus™ Treatment Planning System
The HDRplus is a New HDR planning program
with lot of new features and tools. The program automatically
optimizes dwell times and positions for applicators in the
treated volume. It supports auto detection for applicators (
version 3.0 ) and has features included like dose shaping and
image fusion. The calculations are conforming to TG43.
Multiple Planning and
Documentation
Treatment comfort and user-friendliness
thanks to HDRplus™ – The software delivers an optimised treatment plan and
makes the process especially fast, flexible and precise.
HDRplus™ is an innovative
software program for precise and efficient HDR treatment planning. It
provides its users with functions that considerably simplify and speed up
their plan preparation. This software supports all HDR applications,
including intraluminal, interstitial, intracavitary, intra-operative und
surface mould treatments. An optional Prostate Module permits real
time online planning using transversal and longitudinal TRUS.
HDRplus™ utilises IBt Bebig´s
complete applicator database in order to allow fast and precise positioning
of the applicator on the digital image.
HDRplus™ offers Auto Contouring and CT/MR
Image Fusion – a benefit of modern imaging technology. An extensive and
customisable report function provides user-defined information and
streamlined output.
-
User-friendly
-
Complete applicator database
-
Extended dose optimisation features
-
Efficient evaluation and viewing
-
Extensive and customisable documentation
-
Auto Contouring
-
CT/MR Image Fusion
The HDRplus High Dose Radiation Therapy Treatment Planning
Program displays significant advantages compared to other
programs. The program is based on the experience gained through
the development of LDR (low dose radiation) brachytherapy,
ultrasound imaging systems, and software for the processing of
x-ray, CT and MR images. Clinical experience in HDR/PDR is the
foundation of the program and its user interface.
Specifications
|
|
HDRplus™ Features
- Image acquisition available
through real-time frame grabber, TWAIN compatible film scanner,
DICOM 3.0 TCP/IP-network, floppy disk, CD-ROM, etc.
- Up to 20 different image file
formats readable: DICOM 3.0, BMP, JPEG, TIFF, GIF, PNG, PCX, ...
etc.
- Image sequence based planning
with co-registration (i.e. planning based on image sequences
acquired from different imaging modalities) of two image sequences
with up to 512 images per sequence.

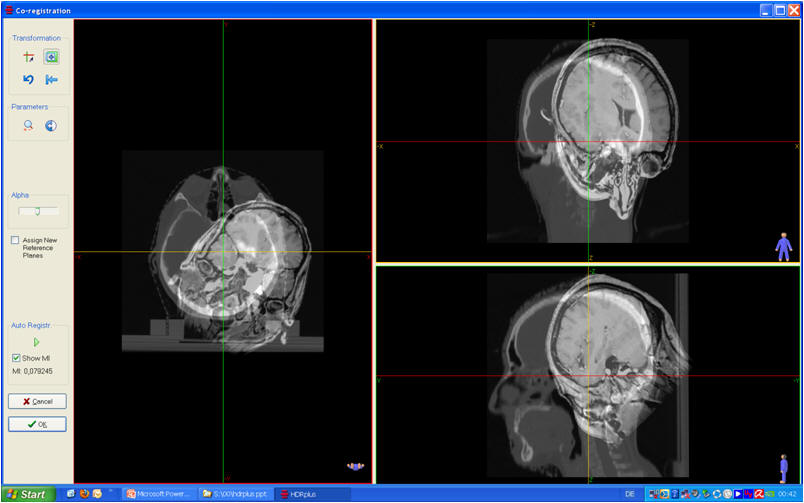

- Image Fusion at variable
oblique scan angles and offsets between image sequences acquired
with different imaging modalities: Ultrasound, PET, MR or CT.

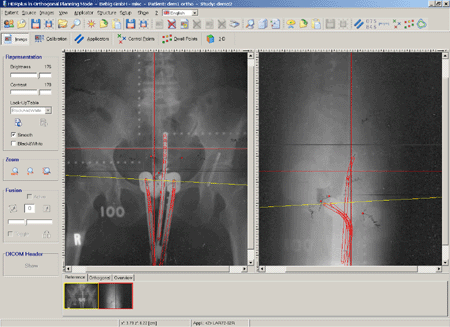

- Orthogonal and semi-orthogonal
reconstruction based on up to four isocentric X-ray images at
variable angles.
- Non-isocentric reconstruction
with x-ray films acquired using a reconstruction box.

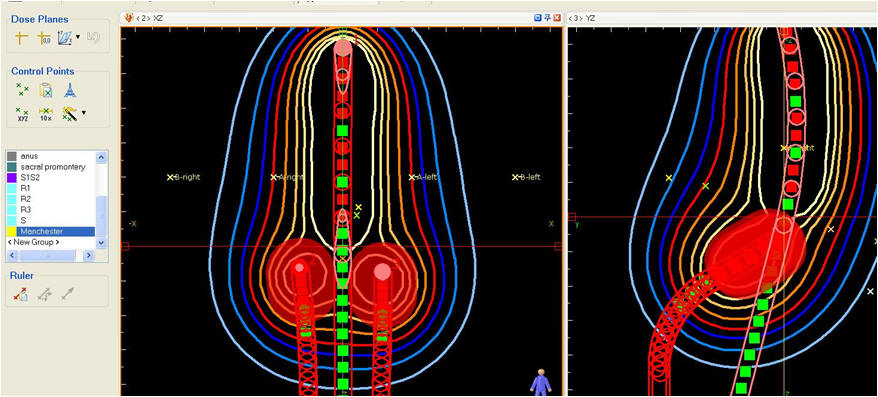

- Editing of applicators,
control points, isodoses, etc. on user defined arbitrary oblique
distribution planes showing dose distributions in three orthogonal
views relatively to the applicator
- Easy positioning of
applicators with a mouse click
- Easy manual contouring of
anatomical structures with the computer mouse
- Interpolation of missing
contours on intermediate image planes

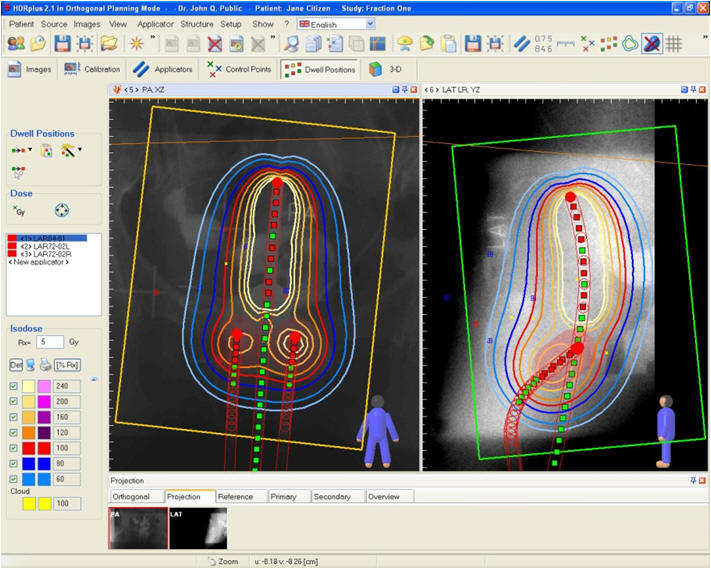

- Dose calculation considering
applicator shield
- Automatic calculation of dwell
times unsurpassed by manual editing
- User configurable collection
of clusters: Pre-defined applicator, dwell point and control point
scenarios that may be loaded and placed, rotated, etc. like a single
applicator.
- Geometric and dose control
point optimization available
- Automated placement of dose
control points related to contours or applicators
- Algorithms and data for common
source types are included or can easily be added by the build-in
source editor
- Isodose shape oriented
dwell-time editing with the mouse
- Graphical editing of dwell
times displayed as bar graph
- Applicator and shield
attenuation is modeled for dose calculation
- Ovoids and shields are
displayed with user defined transparency

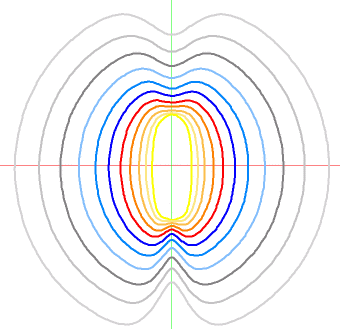

- Complies with the current
AAPM TG-43 recommendations dated March 2004. For
the first time accurate point and line source modeling of the source
anisotropy was implemented in a commercially available product.
Calculation of the actual dose considering source anisotropy as well
as applicator and shield contribution.
- Set prescription dose at dose
control points relative to applicator and axis
- Real-time calculation of
isodoses during dwell position editing
- Immediate calculation of local
dose at cursor position

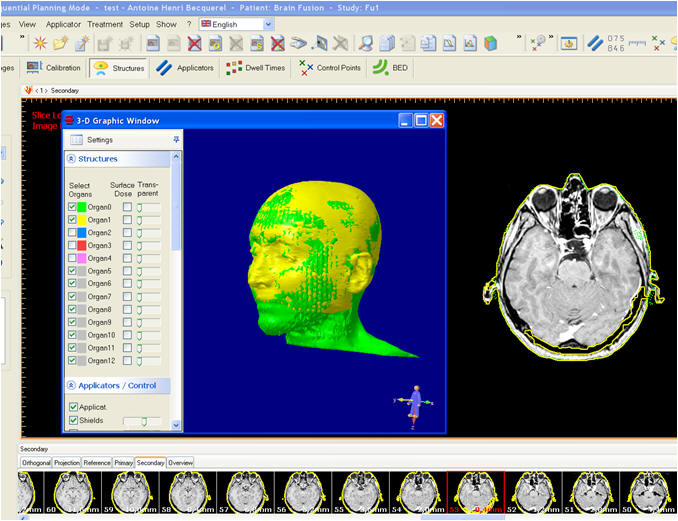

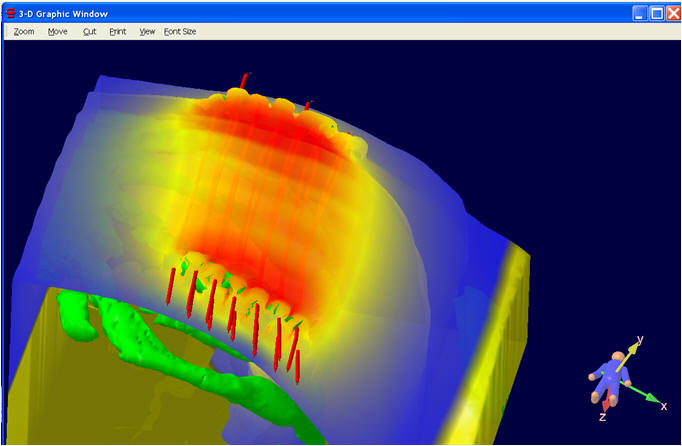

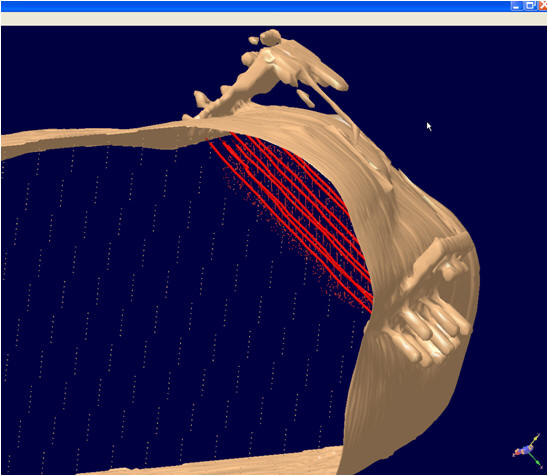

- 3D isodoses and applicator
display, 3D organ surface depiction based on the manually drawn
contour

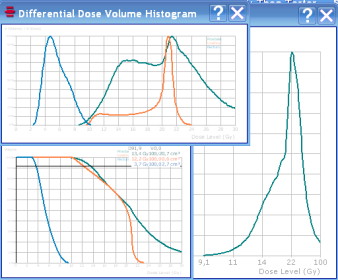

- Comprehensive report in color,
consisting of up to 50 pages in letter format including: source
data, patient data, applicator dwell points, isodoses, cumulative,
differential and "natural" dose volume histograms, etc. The report
may be previewed before printing.

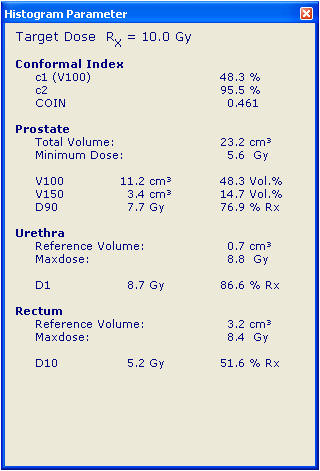

- Up to eight user configurable
histogram parameters (D90, V100, etc.) per organ or structure
- Dose alerts (optical and
acoustical) for dose parameters, when Dxx or Vxx are exceeding a
user defined range: An audio signal is generated the new value is
emphasized in color
- Conformal Index COIN and total
dose volume
- User configurable line
thickness, color etc. for contouring, displayed isodose lines,
applicators, and others
- Dwell point display and edit
feature for selected applicator.

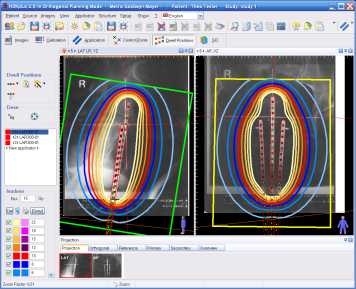

- Multilingual operator
interface in English and German. Other languages on request.
- Intuitive operator guidance
- Build-in context sensitive
online help, i.e. for any object of the software the related chapter
of the help manual appears after pressing function key [F1].
- Multi-threading (parallel
processing) support: Increasing the execution speed on computers
with Dual Core™ processors by a factor of two.
- Developed for Microsoft™
Windows™ XP Professional (Service Pack
2)
and much more...
- DRRs (Digitally Reconstructed
Radiographs) for simultaneous planning on (image fusion) CT / MR
sequences and virtual X-ray films.
- Automated Contour Recognition
in CT sequences
- Automatic Manchester Points
- Automated Applicator Position
Recognition in CT sequences
- Contour based automated
Applicator Positioning
- Template for Prostate
Treatment
- Stepper Interface Position
Feedback for Prostate Treatment
- DICOM RT Dose Import and
Export for combination therapy
- DICOM RT Plan Export for
independent interface to various afterloader systems
- DICOM RT Struct Import and
Export
- Microsoft™ Windows™ Vista™
Windows 7 Support
|
 |
|
