HDR IORT ( High Dose Rate Intra-Operative Radiation Therapy ) Applicator - Shielded - Breast Applicator

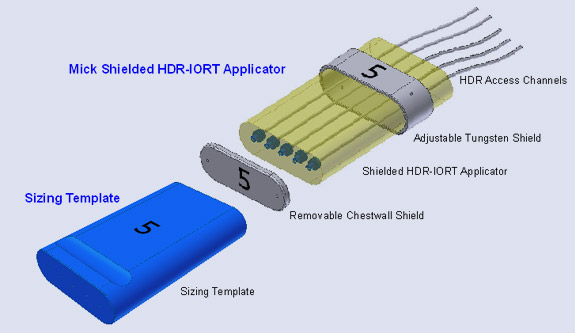

Shielded HDR-IORT Applicator

This Applicator System is Suitable for HDR-IORT (i.e. Breast)
(High-Dose-Rate Intra-Operative Radiation Therapy)
SeeDOS Code Number :  0408
Features
• Applicator is similar in design as the H.A.M. IORT Applicator (Harrison, Anderson, Mick)

• Available in broad range of sizes; 2-10 Channels.

• Adjustable Tungsten Shields provided in sizes 2-10.

• Sizing Templates are provided with the system for proper applicator selection; 2-10.

• Compatible with all of today’s Remote Afterloading Systems :   MultiSource® / GammaMed® / VariSource® / MicroSelectron®)
Clinical advantages
• Treatment is performed at the time of surgery, when  the target  area    (tumour bed) is exposed and the applicator can be placed directly over    the target.

• Organs at risk may be retracted and shielded as necessary.

• This technique is free of any accessibility limitations: the applicator    can be used in virtually any anatomic locations.

• The flexible applicator used for HDR-IORT easily conforms to the    target area ensuring dose delivery throughout the target volume.

Sizing Templates are designed to provide the surgical team with a practical and inexpensive way to designate the appropriate size of IORT Applicator at the time of surgery. This feature allows for sterile HDR IORT applicators to remain untouched and intact in their respective pre-sterilized condition.

(1) Breast Excised Tumour
(2) Breast Sizing Template Only
(3) Breast Sizing Template with Shield
(4) Breast Applicator in Place Sutured
(5) Breast Applicator GammaMed
Sizing Templates and Tungsten Shields are
REUSABLE and AUTOCLAVEABLE!

The Shielded IORT Applicators are for “ONE-TIME” Use Only!
Sterilization: (ETO-Ethylene Oxide)
HDR-IORT Applicator - For-One-Time Use Only
# of Channels
Catalog #
Description
Size
WidthxLengthxThickness
Sterilization
2
0408-2
HDR-IORT Applicator - 2 Channel
3cm x 10cm x 2cm
ETO (Ethylene Oxide)
3
0408-3
HDR-IORT Applicator - 3 Channel
4cm x 10cm x 2cm
ETO (Ethylene Oxide)
4
0408-4
HDR-IORT Applicator - 4 Channel
5cm x 10cm x 2cm
ETO (Ethylene Oxide)
5
0408-5
HDR-IORT Applicator - 5 Channel
6cm x 10cm x 2cm
ETO (Ethylene Oxide)
6
0408-6
HDR-IORT Applicator - 6 Channel
7cm x 10cm x 2cm
ETO (Ethylene Oxide)
7
0408-7
HDR-IORT Applicator - 7 Channel
8cm x 10cm x 2cm
ETO (Ethylene Oxide)
8
0408-8
HDR-IORT Applicator - 8 Channel
9cm x 10cm x 2cm
ETO (Ethylene Oxide)
9
0408-9
HDR-IORT Applicator - 9 Channel
10cm x 10cm x 2cm
ETO (Ethylene Oxide)
10
0408-10
HDR-IORT Applicator - 10 Channel
11cm x 10cm x 2cm
ETO (Ethylene Oxide)


HDR-IORT Applicator - For-One-Time Use Only

# of Channels
Catalog #
Description
Size
WidthxLengthxThickness
Sterilization
2
0408-2-ST
Sizing Template - 2 Channel
3cm x 10cm x 2cm
AUTOCLAVE
3
0408-3-ST
Sizing Template - 3 Channel
4cm x 10cm x 2cm
AUTOCLAVE
4
0408-4-ST
Sizing Template - 4 Channel
5cm x 10cm x 2cm
AUTOCLAVE
5
0408-5-ST
Sizing Template - 5 Channel
6cm x 10cm x 2cm
AUTOCLAVE
6
0408-6 -ST
Sizing Template - 6 Channel
7cm x 10cm x 2cm
AUTOCLAVE
7
0408-7-ST
Sizing Template - 7 Channel
8cm x 10cm x 2cm
AUTOCLAVE
8
0408-8-ST
Sizing Template - 8 Channel
9cm x 10cm x 2cm
AUTOCLAVE
9
0408-9-ST
Sizing Template - 9 Channel
10cm x 10cm x 2cm
AUTOCLAVE
10
0408-10-ST
Sizing Template - 10 Channel
11cm x 10cm x 2cm
AUTOCLAVE

Sizing Template (AUTOCLAVE)

Temperature: 132º C
Pressure: 27psgi
Time: 10 minutes
Drying 15 minutes


HDR-IORT Applicator (ETO)

Ethylene Oxide: 90% HCFC/10% ETO mixture
Time: 2 hours and 10 minutes
Max. Vacuum: 26.6 inches Hg @ 130° F
Pressure: 11 PSI
Aeration Time: 24 Hours @ 130° F
CAUTION: ETO ONLY - DO NOT AUTOCLAVE
For One-Time Use Only!
