HDR Gynaecological Template, SeeDOS Code 0808

For ultrasound guided gynaecological and urethral HDR brachytherapy

Image Guided Needle Placement !

The HDR Gynae template is compatible with commonly used Ultrasound Stepper and Stabilization Devices.

" Needle placement by means of ultrasound visualisation"

Compatible with any Remote Afterloading System,the HDR GYNAE Template provides more reliable needle handling, better visualization
of needle placement and ultimately more accurate needle positioning.

Features:

•  Provides Ultrasound Guidance

•  Better Template Stabilization

•  Reliable Needle Guidance

•  Easy Handling

•  Adjustable Obturator

•  One-Lock Mechanism for Peripheral Needles

•  CT Compatible Intrauterine Tandem

•  Can be used with FlexiGuide Needles

•  Can be used with Titanium Needles

•  The Gynae Template is fully AUTOCLAVEABLE

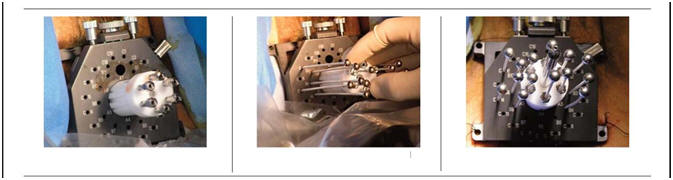

              Template sutured to the Perineum                 Placement of internal and peripheral             Needles locked in place and readied

                    Cervical Obturator in Place                                   FlexiGuide Needles                                     for HDR Brachytherapy

          Photos courtesy of Sang Sim, MD., Department of Radiation Oncology, memorial Sloane-Kettering Cancer Centre, New York, NY

The Gynaecological template is compatible with commonly used Ultrasound Stepper / Stabilization devices and particularly with the AccuCARE Micro-Touch Stepper Stabilizer Template System provided by SeeDOS Ltd.



The GynaeTemplate, obturator and tandems can be AUTOCLAVED!      FlexiGuides Needles use EtO sterilization.

What’s in the package:

1 off  Gynae Template;                                                  SeeDOS Code 0808

1 off Vaginal Obturator;                               SeeDOS Code 0808-VG

1 off  Titanium Tandem - straight;                                SeeDOS Code 0508-02-ST

1 off Titanium Tandem - medium curved;    SeeDOS Code 0508-02-MD

1 off Titanium Tandem - max curved;          SeeDOS Code 0808-02-MX

1 off Allen Wrench; (St. Steel)                      SeeDOS Code 0808-AW

1 off Collet Lock Tool; (St. Steel)                  SeeDOS Code 0808-CLT

1 off Sterilization Tray;                                 SeeDOS Code 071522

1 off Instruction Manual

Items not included:

HDR Source-Guide Tubes / HDR Source Transfer Tubes

FlexiGuide Needles and Stylets ( to be purchased separately )

Technical Description

The HDR-GYN Template is contoured like the standard HDR Prostate Template allowing for CT compatible FlexiGuide Needles to be placed peripherally on the vaginal obturator.

•  The obturator features 6 peripheral channels wherein needles can be placed beyond the tip of the obturator to provide a more optimal dose distribution.

•  The obturator’s peripheral FlexiGuide Needles can be locked in place individually by means of a special tool which enables the user to lock or unlock the needles. Needles are fixed in place by specially designed collets.

•  The 26mm diameter obturator is adjustable on the axis and fixed in place by means of an externally located thumb screw.

•  Included with the Gynae Template are 3 each CT compatible Titanium tandems; straight, medium and max curved. All having a 3mm diameter intrauterine component. The tandem is held captive by means of a special tool. ( Allen Wrench )

•  In addition to the 6 needles placed peripherally on the obturator, additional needles can be placed throughout the template’s matrix of needle placement options to further broaden the dose distribution.

Materials Used:

Aluminum - Hard Coated; Contour Template Titanium; Knobs and Tandems

Delrin; Obturator

St. Steel; Allenwrench

St. Steel; Collet Lock Tool

Sterilization Procedure:

HDR-GYN Template:      AUTOCLAVE

Obturator :                                      AUTOCLAVE

Titanium Tandems :           AUTOCLAVE

Collets, Knobs and Tools :  AUTOCLAVE

Sterilization Time:          30 minutes

Temperature:                            121oC (250oF)

Pressure:                                    15 PSIG
