The New IBt-Bebig MultiSource® remote controlled afterloader is designed for high dose rate brachytherapy with
Co-60 or Ir-192
sources.
The only HDR remote
afterloading brachytherapy unit that will take a full activity Co-60 source
providing HDR treatment regimes similar to Ir-192.
Recent articles :
Report from
the first UK centre to use Co-60 for HDR treatments
Recent brochures :
Please click here for the
Latest HDR MultiSource Brochure
Please click here for the
Latest HDR MultiSource
FactSheet
Please click here for the
Latest HDR MultiSource Applicators & Accessories Brochure
Please click here for the
Latest HDRplus Software Brochure
Recent posters include :
IPEM :
" The Physics,
Economics and Clinical Use of Co-60 for High Dose rate Brachytherapy".
Palmer A, Mzenda B, Hatman O, Hosseini-Ashrafi M, Queen Alexandra Hospital,
Portsmouth Hospitals. Please click here for a copy in pdf format."
ESTRO :
" Co-60 or
Ir-192 for HDR Brachytherapy - Evaluating Source Parameters, CTV & OAR Doses,
Optimal Prescribing & Economics", Palmer A, Mzenda B, Hayman O, Nagar Y,
Hosseini-Ashrafi M, Queen Alexandra Hospital, Portsmouth Hospitals NHS
Trust, UK. Please click here for a copy in pdf format."
ASTRO : "Does the
choice of isotope,Co-60 or Ir-192, effect treatment planning techniques and
outcomes for high dose rate (HDR ) brachytherapy ?". Palmer A, Mzenda B,
Hayman O, Nagar Y, Queen Alexandra Hospital, Portsmouth Hospitals NHS Trust,
UK. Please click here for a copy in pdf format.
GEC-ESTRO, London 2011 :
"GEC
ESTRO versus ICRU 38 Dosimetry - the Co-60 Perspective." Hayman Orla, Palmer
Antony, Muscat Sarah, Queen Alexandra Hospital, Portsmouth Hospitals NHS
trust, UK. Please click here for a copy in pdf format.
Please contact cwalters@seedos.com for
a more detailed Product Specification including HDR plus treatment planning
software and applicators.
Recent papers include :
Phys. Med.Biol, 54 ( 2009
) p7417-7434 based on the initial commissioning of the IBt-Bebig MultiSource
system at Portsmouth, entitled : “Performance assessment of the BEBIG
MultiSource high dose rate brachytherapy treatment unit”. To review this
paper please click here.
|
 |
|

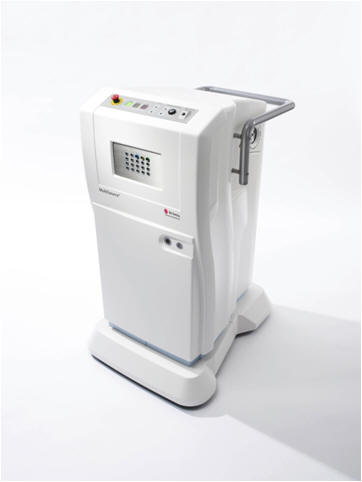

The New Redesigned Main Unit
The
New MultiSource
afterloader system is designed for the entire range of
HDR brachytherapy applications with Co-60 or Ir-192
sources.

|
 |

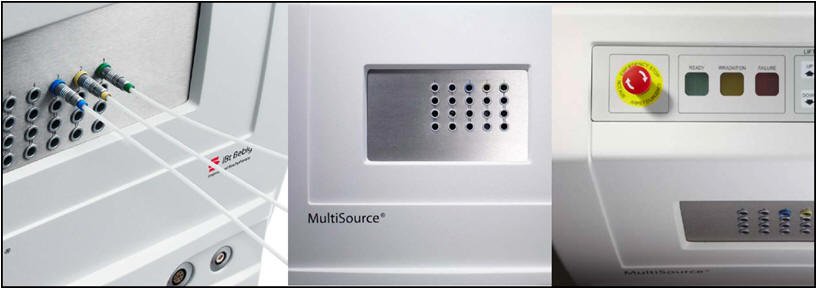

Multiple
Applications |
The new
MultiSource
afterloader permits the complete range of HDR
applications with 40 Channel Support, specially
developed for safe, accurate and cost efficient intraluminal, interstitial, intracavitary,
intra-operative and surface mould treatments. A complete
range of applicators, catheters, needles and templates
is available for the MultiSource.
Multiple Safety:
The Channel Coding of the MultiSource HDR
Afterloader offers even more treatment safety
Multiple Comfort:
IBt-Bebig uniquely integrates the In-Vivo Dosimetry
System inside the MultiSource, as the customer requires.
Multiple Quality:
Made in Germany- The MultiSource HDR afterloader
was designed and developed in Germany. More than 35
years of experience in accordance with German
manufacturing standards guarantee the highest quality.
Multiple Reliability:
The reliability of the MultiSource HDR afterloader is
outstanding - 100,000 source transfers are
certified and thus guaranteed ( IBt-Bebig's Co-60 source
)
|
|
|
Multiple Sources including
Miniaturised Co-60 Source |
BEBIG’s
proven expertise in the manufacturing of sealed sources
has resulted in a miniaturised high activity Co-60
source, which is the same size as a conventional Ir-192
source. A miniaturised Co-60 afterloader source can be
used for equivalent applications and delivers equivalent
treatment results as the standard Ir-192, but at a lower
operating cost per treatment.
Multiple Planning and Documentation:
Treatment comfort and user-friendliness thanks to
HDRplus - The software delivers an optimised treatment
plan and makes the process especially fast, flexible
and precise.
|
|
|
Lower
Operating Costs |
MultiSource
was developed to provide the clinic with a very cost
efficient solution. Hence MultiSource
is equipped with the ability to hold a full activity Co-60 source. Alternatively it can be
equipped with an Ir-192 source. Due to the long half
life of Co-60, operational costs are reduced to
approximately one fifth of a conventional Ir-192 HDR
afterloading system. Just one source exchange per 10
years of operation is usually required, compared to 35
to 40 source exchanges with conventional Ir-192. This
results in a significant reduction in expenses for
sources, transport, service and patient treatment.
|
|
|
Universal
Catheter System |
The unique
Universal Catheter System is an enclosed catheter, which
is inserted directly into the applicators. This solution
provides a very easy applicator connection and
guarantees a safe and fast emergency procedure, which
does not require removing the applicator from the
patient.
|
|
|
Integrated
Calibration System |
An
integrated fixed length test path guarantees a precise
calibration of the source transportation system. In
addition, source position accuracy can be independently
verified with the integrated camera.
|
|
|
Automatic
Length Verification |
MultiSource
measures every applicator, catheter and needle length
automatically. This unique feature reduces treatment
time while guaranteeing precision treatment by
eliminating manual measurements.
|
|
|
Treatment
Console Features |
 |
Data
import from external brachytherapy planning system via
network or floppy disk |
|
|
Automatic
adjustment of treatment time based on current source
strength |
|
|
Control
and monitoring of entire treatment process |
|
|
Programming and editing of source movement |
|
|
Synchronisation of electronic timers in treatment
console and main unit |
|
|
Recording
and exporting of treatment data |
|
|
On screen
help functions |
|
|
Support of
max. 100 dwell points for treatment length of 600 mm and
minimum stepping distance of 1 mm
|
|
|
Co-60
Source Characteristics |
|
|
|
Proven
clinical results – Co-60 sources introduced by Henschke
in 1960 |
Miniaturised Co-60 Source |
|
|
Miniaturised sources for entire range of brachytherapy
treatments |
|
|
Guarantees
predictable treatment times due to long half life |
|
|
Tested per
ISO 2919-80 – classification C65444 |
|
|
Anisotropic and radial function fitting tested as per
PTB standards
|
|
|
Safety
Features |
|
|
|
Universal
Catheter System for safe and convenient treatment |
Universal Catheter System |
|
|
Integrated
calibration system for easy and accurate daily
verification |
|
|
Battery
backup system for safe source retraction in the event of
a power failure |
|
|
Hand crank
for power independent, emergency source retraction |
|
|
Two
different monitoring systems for treatment time and
source position |
|
|
Tungsten
alloy safe designed for Co-60 and Ir-192 |
|
Main Unit |
|
Dimensions
(Wx D x H) |
710 x 668
x 1010–1310 mm |
|
Weight |
270 kg |
|
Standing
surface / Base plate |
0,47 m2 |
|
Voltage
range |
95–135 V
/190–264 V, 1/N/PE, 47–63 Hz |
|
Power |
460 VA |
|
Recommended fuse value |
16 A,
characteristic. C |
|
Classification |
Class
I,Type B equipment according to IEC 601-2-17 |
|
Working
Environment |
|
Temperature |
10 to 40
°C / 50 to 110 °F |
|
Relative
air humidity |
30–75% |
|
Air
pressure |
70 kPa–110
kPa |
|
Radiation
Shielding IEC 601-2-17 |
|
Dose rate
in 1m distance for Co-60 < 0.01 mSv/h |
|
Dose rate
in 1m distance for Ir-192 < 0.001 mSv/h |
|
Radioactive Sources |
|
74 GBq
Co-60 and 370 GBq Ir-192 |
|
Active
Source Component |
|
Ø 0,6 x
3,5 mm Co-60 and Ø 0,6 x 3,5 mm Ir-192 |
|
|
Source Calibration
Safety Functions
The storage container is made of tungsten alloy and guarantees radiation protection.
•
•
•
|
The internal battery ensures a safe source or dummy retraction in the event of power failure.
An additional emergency retraction system is available as backup for the drive system.
In the improbable case that both electrical systems fail, a hand crank can be used to pull back the source manually.
Automatic source retraction as soon as the door to the operating theatre opens.
Two different monitoring systems control treatment time and source position. |
Drive and Automatic Calibration System
•
•
•
• |
Integrated automatic drive calibration system performs 100% positioning accuracy.
Additional camera system for visual positioning control.
Verifying of channel connections and applicators before the treatment starts.
Movement and force control is dependent on applicator requirements.
The positioning accuracy is +/- 1mm. |
Additional System Specifications
•
•
•
•
|
20 way channel indexer.
Indexer height variation from 800 up to 1100mm.
The compete system is easy movable.
Integrated multimeter for dose control |
The Treatment Control Panel
The control panel displays and controls the entire functions and treatment data of the multi source afterloader.
•
•
•
•
•
•
•
•
•
•
•
•
•
|
The tasks of the treatment control panel
Import of treatment data from external planning systems.
The multi source panel software automatically adjusts the treatment time based on the source activity.
Transfer of planning data to the main unit.
Comparison the irradiation data from the main unit with own calculation.
Requesting of status information from the main unit.
Displaying of status information.
Starting, continuing and interrupting a planned irradiation by user’s action.
Synchronization of the electronic timers in control panel and main unit.
Recording of the entire irradiation data.
Export of irradiation data for later planning.
User guidance for irradiation, source and calibration data administration.
Administration and generation of source movement sequences.
Max.100 dwell points per program are supported for an irradiation length of 600 mm and a resolution of 1 mm. |
Specifications of the MultiSource
| Dimensions: |
710 X 668 x 1010 up to 1310mm (L-W-H) |
| Weight: |
270 kg |
| Ground Plate Size: |
0,47 m² |
| Voltage: |
115 / 230 V, 47 - 63 Hz, 1/N/PE |
| Power: |
460 VA |
| Fuse Rating: |
16A, LS- Breaker C |
| Classification: |
Class I, Type B (IEC 601-2-17) |
| Working Environment |
|
| Temperature: |
+10 to +40 C° |
| Relative Air Humidity: |
30 to 75% |
| Air Pressure: |
70KPa to 110KPa |
| Strahlenschutz |
IEC 601-2-17 |
| Dose Rate in 1m Distance |
for Co-60 < 0.01 mSv / h |
| Dose Rate in 1m Distance |
for Ir-192 < 0.001 mSv / h |
| Source |
|
| Co-60 |
74 GBq (± 5%) |
| Ir-192 |
370 GBq (± 5%) |
HDRplus™ Treatment Planning System
The HDRplus is a New HDR planning program with lot of new features and tools. The program automatically optimizes dwell times and positions for applicators in the treated volume. It supports auto detection for applicators ( version 3.0 ) and has features included like dose shaping and image fusion. The calculations are conforming to the TG43. ( more ).
Multiple Planning and
Documentation
Treatment comfort and user-friendliness
thanks to HDRplus™ – The software delivers an optimised treatment plan and
makes the process especially fast, flexible and precise.
HDRplus™ is an innovative
software program for precise and efficient HDR treatment planning. It
provides its users with functions that considerably simplify and speed up
their plan preparation. This software supports all HDR applications,
including intraluminal, interstitial, intracavitary, intra-operative und
surface mould treatments. An optional Prostate Module permits real
time online planning using transversal and longitudinal TRUS.
HDRplus™ utilises IBt Bebig´s
complete applicator database in order to allow fast and precise positioning
of the applicator on the digital image.
HDRplus™ offers Auto Contouring and CT/MR
Image Fusion – a benefit of modern imaging technology. An extensive and
customisable report function provides user-defined information and
streamlined output.
-
User-friendly
-
Complete applicator database
-
Extended dose optimisation features
-
Efficient evaluation and viewing
-
Extensive and customisable documentation
-
Auto Contouring
-
CT/MR Image Fusion
|
-
for a higher standard in HDR brachytherapy
